Aluminium Base Copper clad Laminate PCB Board for LED PCB AL CCL
Home  /  Products  /  Aluminium Base Copper clad Laminate PCB Board for LED PCB AL CCL

Aluminium Base Copper clad Laminate PCB Board for LED PCB AL CCL

Inquire Now
Categories
  • Product Detail
We can offer a variety of packaging options and produce products according to the customer's OEM specifications, including different sizes such as buckets and bottles, as well as varying weights.

Rated Voltage>20KVTypeInsulation Sheet
MaterialAluminiumApplicationHigh Voltage
Tensile Strength>300 MPaProduct nameAluminium Copper Clad Laminates
Plates Thickness0.8/1.0/1.2/1.4/1.5/1.6 mmThermal Conductivity0.5/1/1.5/2 W
Standard Size1000*1200 mmFilm ColorGreen/Blue/No
CertificationISOMaterialAl base, Copper Cladding
Delivery time10-15 DaysSampleAvaliable
AplicationPCB ,LED
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Contact Form (#3)
Related Products
Details
FR-1 OEM Circuit Board Manufacturer Providing Custom FR4 PCB & PCBA with OSP Surface Finishing and 1.6mm Thickness

Material FR-4 Type Pcb Board Base Material FR4 Board Thickness 1.6mm Copper Thickness 36um Min. Hole Size 0.2mm Min. Line Width 0.075mm Min. Line Spacing 0.075mm Surface Finishing OSP Base Material: FR4 Board Thickness: 1.6mm Min. Line Width: 0.075mm Surface Finishing: OSP Copper Thickness: 36um Min. Hole Size: 0.2mm Min. Line Spacing: 0.075mm Application Electronics […]

Details
Double Sided Copper Clad Laminate PCB Board FR4 Based 40KV Rated Flame Retardant High Thermal Stability High Voltage Medical

Rated Voltage 40KV Type Insulation Sheet Material Glass fiber and epoxy resin and copper foil Application High Voltage Mounting Type Other Mounting Type Tensile Strength Excellent Thickness 1.0mm, 1.6mm, 2.0mm Temperature Resistance -50~260 Usual Color Green or Blue Sheet Size 1000*1200mm, 1020*1220mm or Customized Size Copper Thickness 18um, 35um, 70um Material Epoxy Resin+fiber Glass+copper foil […]

Details

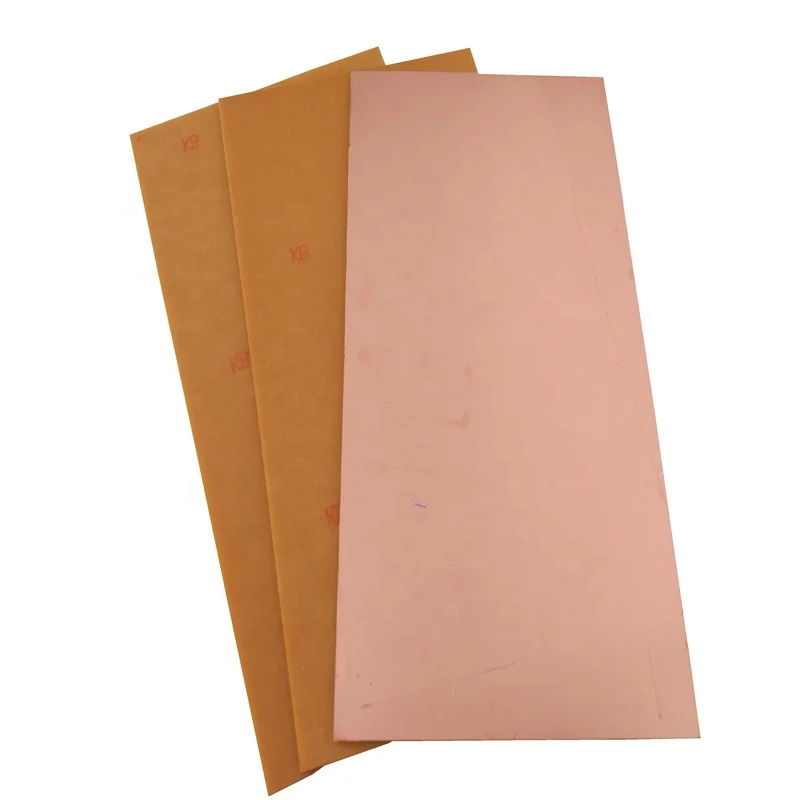

High Voltage Fiberglass Copper Clad Laminate Sheet FR4 XPC FR1 CEM-1 CEM-3 AL CCL 40KV Rated Voltage ROHS Certified
